Through Feed Point To Point

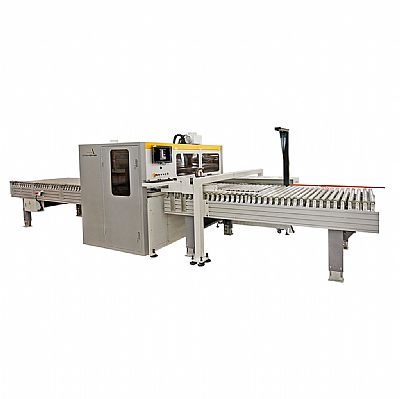

STRYKER-6S

The POINT to POINT through feed machining line has revolutionized the field of boring,

grooving and routing  thanks to its innovative technology and maximum flexibility and productivity.

This series has been designed to obtain the maximum flexibility possible while maintaining a high volume output.

No machine setup time therefore greatly increased part to part throughput and overall productivity.

Exclusive optical part reading for perfect edge referencing and boring without depending on the operator’s accuracy.

Fully automatic parts positioning by the machine therefore operator misfeeds are no longer an issue.

Small batch random part processing is as effective as large run processing

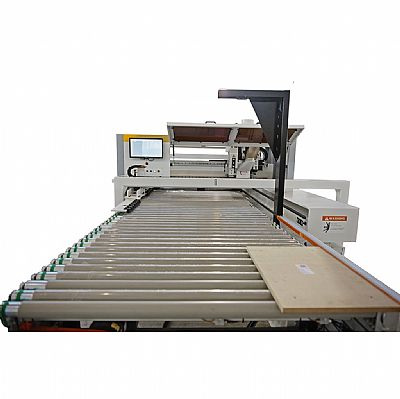

-Material feeding system feature, with optional auto barcode reader for scanning and feeding material for full automatic process.

-Air-floating table design, to reduces friction and avoid the scratch on the surface of material.

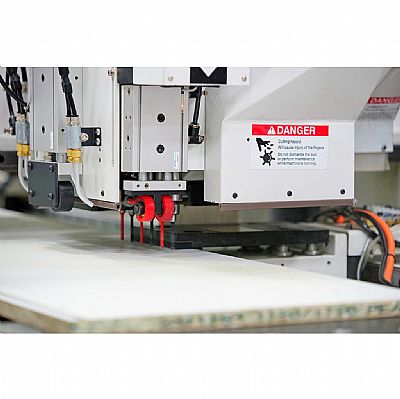

-Servo gripper feature, machine is able to record the position of grippers,

no need reference back and forth during working and no down time necessary.

Duo gripper system makes the machine able to process material up to 2,400mm.

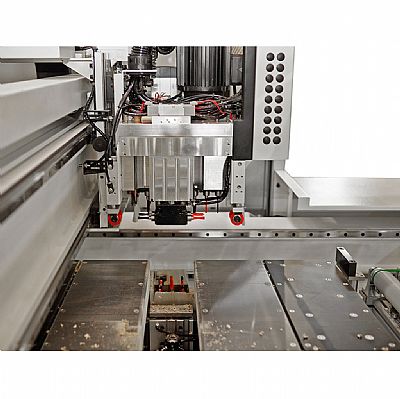

-With 2 drill unit (from top and bottom), able to process 6 side of material in one pass, much improve the production efficiency.

-Ballscrew drive system, provide stable and accurate processing quality.




TECHNICAL DATA
MODEL STRYKER-6S
CLAMP PIECE DIMENSIONS L*W*T MAX 2400*1200*50 mm
L MIN. >350 mm
W*T MIN. 50*10 mm
WORK DIMENSIONS (FULL COVER) X*Y*Z 2400*1200*50 mm
Y drill (top) Y DIRECTION MAX. 1200 mm
Y drill (bottom) 1200 mm
Router (top) 1200 mm
Router (bottom) 180~1200 mm
V drill & X drill (top) 1200 mm
MAX. FEED SPEED X1 & X2 AXES 60 M/MIN.
Y1 & Y2 AXES 60 M/MIN.
U AXIS 30 M/MIN.
Z1 & Z2 AXIS 15 M/MIN.
NO.1 MULTI-DRILL DRILL ROTATION SPEED 4800 RPM
Y * X, HX, HY -> 7X6, 2+2, 2+2 (top) SHANK OF DRILL D=10 mm
Y * Y -> 4 X 3 X 4 SHANK OF DRILL D=10 mm
NO2. ROUTER SPEED 1000~16000 RPM
ROUTER NOSE ER 25
POWER NO.1 MULTI-DRILL 1.5 KW
NO.1 ROUTER 3 KW
NO.2 MULTI-DRILL 1.5 KW
NO.2 ROUTER 3 KW
  N/A KW
AIR PRESSURE HOSE: 3/4" 6 KG/CM2
CONSUMPTION 330 L/MIN
NC CONTROLLER SYNTEC
DIMENSIONS FLOOR AREA (W*D) 4500 X 5500 6600X8500(FL) mm
HEIGHT 2000 mm
WEIGHT 2000 kg
