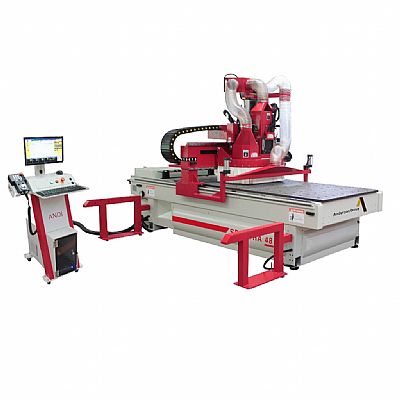

CNC Routers( 3 & 4 Axis Series)
SPECTRA Series
| MODEL |
|
SPECTRA 48 |
SPECTRA 510 |
SPECTRA 612 |
| NO. VACUUM ZONES |
|
1 |
2 |
2 |
| TABLE SIZE |
|
2650X1300mm |
3100X1600mm |
3700X1900mm |
| STROKE |
X-AXIS |
2,500mm |
3,700mm |
3,700mm |
| Y-AXIS |
1,600mm |
1,600mm |
2,200mm |
| Z-AXIS |
200mm |
200mm |
200mm |

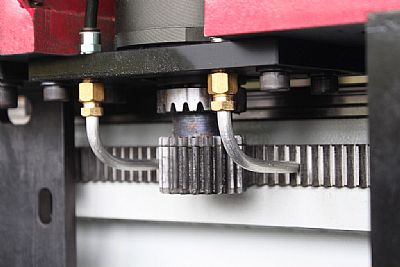

| DRIVEN SYSTEM |
X |
RACK & PINION |
| Y |
| Z |
BALLSCREW |
| RAPID TRAVERSE |
X |
60 M/Min |
| Y |
60 M/Min |
| Z |
20 M/Min |
| ROUTER SPINDLE |
TYPE |
SK-30 AIR-COOLED |
| POWER |
10 HP |
| RPM |
1,000 - 18,000 RPM |
| SHANK DIAMETER |
FOR ROUTER BIT |
MAX @ 25mm |

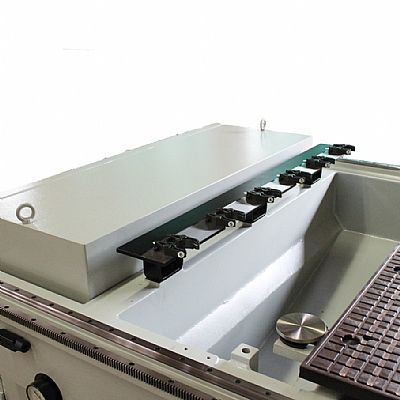

| AUTOMATIC STATIONARY TOOL CHANGER |
ROTATION SPEED |
6 POSITIONS |
8 POSITIONS |
8 POSITIONS |

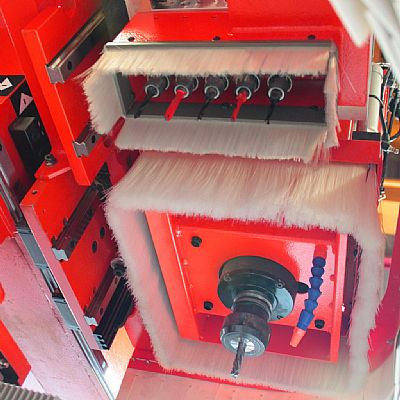

| LINE BORING UNIT |
|
5 x 5 VERTICAL DRILLING |

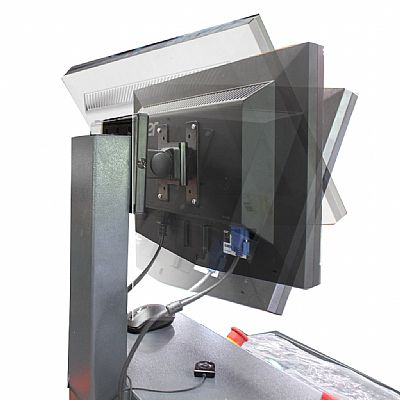

| NC CONTROLLER |
|
SYNTEC |
| DIMENSIONS |
FLOOR AREA |
4,500mm X 3,000mm |
5,500mm X 3,000mm |
5,500mm X 4,000mm |
| HEIGH |
2,400mm |
2,400mm |
2,400mm |
| WEIGHT |
3,000 KGS |
3,500 KGS |
4,000 KGS |
| VACUUM PUMP 250 CBM/HR |
|
1 |
1 |
2 |
| DUST EXTRACTION FOR SPINDLE |
|
STANDARD |
|
| LIGHT BARRIERS |
|
3 sets |
|
| POP UP PIN |
|
3 |
|

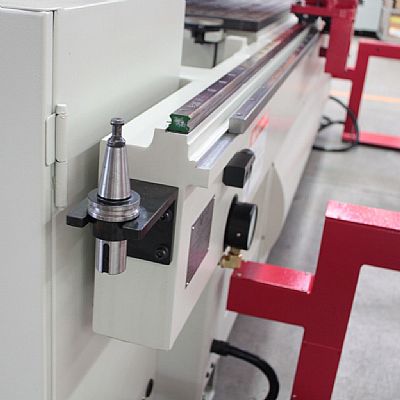

| TOUCH OFF DEVICE |
|
STANDARD |
|
| SAFETY HOOD FOR SPINDLE |
|
STANDARD |
|
| APPLICATION SOFTWARE |
|
CAM PRO HYBRID NEST |
|
| PUSHER |
|
STANDARD |
|
| WARRANTY |
|
12 MONTHS |
|
