Through Feed Point To Point

STRYKER-5

The POINT to POINT through feed machining line has revolutionized the field of boring, grooving and routing thanks to its innovative technology and maximum flexibility and productivity.This series has been designed to obtain the maximum flexibility possible while maintaining a high volume output. NO machine setup time therefore greatly increased part to part throughput and overall productivity.Exclusive optical part reading for perfect edge referencing and and boring without depending on the operator’s accuracy.Fully automatic parts positioning by the machine therefore operator misfeeds  are no longer an issue.Small batch random part processing is as effective as large  run processing.



Technical Features

Set up time = 0

Machine operator can change panel sizes, panel processing requirements with zero time lost when making these changes.



Superior specifications

4 NC axis control including X, Y, Z and U (micro head movement for front/back horizontal boring and routing).



• 12 vertical drilling splindles

• 2+2 horizontal top and bottom drilling spindles

• 1+1 horizontal side drilling spindles

• 1 grooving saw

• 1 router head with exclusive U axis head movement for proper routing of static clamped parts

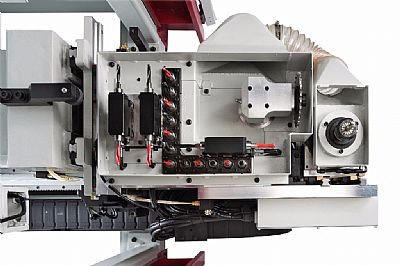

Easy access to head and tooling

The boring head carriage is designed with heat-treated steel that is over-built to provide more rigidity and precision over a long period of time.

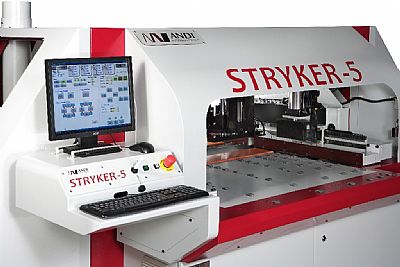

Numerically Controlled with a PC

A Color LCD 17” display with independent keyboard, mouse, integrated network card and USB device is included. Friendly and intuitive software for easy programming and operation.

SPECIFICATIONS



Basic configuration Stryker 5
NC Controller PC office / Color LCD display
Boring range 800 mm (31.5 in)
Quantity of controlled axis 4
X axis speed 50m/min.
Y axis speed 50m/min.
U axis speed 50m/min.
Z axis speed 15m/min.
Minimum part width 50 mm (1.97 in)
Maximum part width 1000 mm (39.37 in)
Minimum part length 250 mm (9.84 in)
Minimum part thickness 10 mm (0.39 in)
Maximum part thickness 50 mm (1.97 in)
Boring head vertical spindles (panel surface) 7 (X axis) x 6 (Y axis)
Boring head horizontal spindles (top & bottom) 2 + 2
Boring head horizontal spindles (sides) 1 + 1
Boring head power 1.5 KW (2HP)
Spindle rotation speed 4800 rpm
Router (collet type) ER32
Tool diameter 2 mm – 20 mm (0.08 in - 0.8 in)
Router Hp 3.75 kW (5HP)
Rotation speed 1000 – 18000 rpm
Grooving (saw power) 1.5 KW (2 HP)
Grooving saw diameter 120 mm (4.72 in)
Maximum blade thickness 5 mm (0.2 in)
Rotation speed 4800 rpm
Automatic Side Pusher standard
Pusher stroke 1000 mm (39.37 in)
Pusher contact surface Rollers

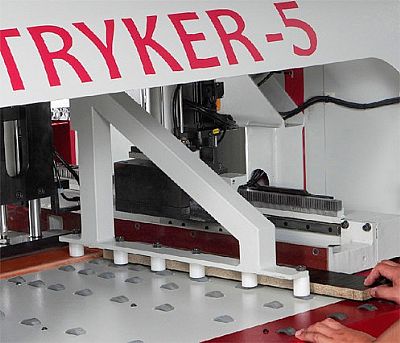

Optical Material Sensor standard
