CNC Routers( 3 & 4 Axis Series)

PTP Series

About he PTP Series



The Anderson PTP Series defines excellence in traditional manufacturing processes by offering a wide selection of machine configurations to meet our client‘s needs.

By making use of many tested and proven features found in other products engineered by Anderson, such as the use of high grade components and heavy duty, cast iron base and gantry construction, the Anderson PTP Series offers clients a truly world class Point to Point manufacturing system. Together with a well-engineered machine, Anderson has completed its Point to Point machining center with an easy to use and fully integrated software package that allows for streamlined workflow and seamless parts designing with motion control being handled by a Syntec CNC Controller.

 With Anderson, your traditional method of manufacturing can be revolutionized to boost your production and put you ahead of the competition.

SPECIFICATIONS



Basic configuration PTP 3013 PTP 3214
Stroke X x Y x Z 3340 x 1420 x 150 3525 x 1570 x 250
Table size X x Y x Z 3000 x 1300 x 60 3200 x 1450 x 200
Speed X-axis 80-60-20 m/min 80-60-20 m/min
Driven system X-axis and Y-axis Rack & Pinion Rack & Pinion
Driven system Z-axis Ball Screw Ball Screw
Table type tubeless tubeless
Rails 6 6
Pods 18 18
Front stops / intermediate stops 6 / 6 6 / 6
Side stops 2R+2L 2R+2L
Panel lifting blades 4 4
Vacuum pump 90 m3/h 90 m3/h

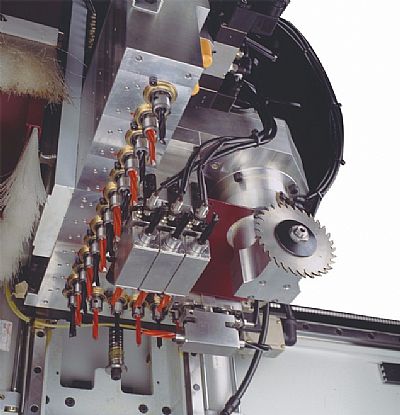

Aggregate Head 23 23
Independent vertical spindles on X / Y 13 / 7 13 / 7
Independent horizontal spindles on X / Y 3+3 / 1+1 3+3 / 1+1
Drilling step 32 mm (1,3 in) 32 mm (1,3 in)
Motor 2,25 Kw 2,25 Kw
Rotation 4800 rpm 4800 rpm
Saw Blade 90° rotation standard standard
Motor 2,25 Kw 2,25 Kw
Blade diameter 120 mm (4,7 in) 120 mm (4,7 in)
Main head 3 axis 3 axis
Spindle 8Kw 1000-18000 rpm Cone ISO 30
Spindle 12Kw 1000-24000 rpm Cone HSK- 63F standard standard
Automatic stationary tool change 8 positions 8 positions
Tool diameter max. 110 mm (4,3 in) 110 mm (4,3 in)
C-Axis rotation optional optional
Light barriers standard standard
Safety hood for Spindle standard standard
Handwheel standard standard
NC Controller Syntec Syntec
Weight 3300 Kg 3500 Kg
