CNC Routers( 3 & 4 Axis Series)

STRATOS Series

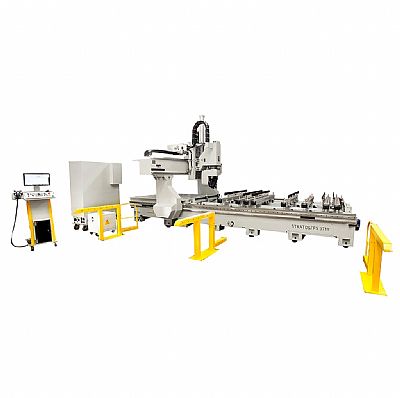

The STRATOS Series Moving Gantry



3-axis machining centers set a new level of CNC accuracy and machining performance. The combination of a highly rigid base, steel weldments and castings and high accuracy Servo System make the STRATOS machining centers an ideal choice for machining wood, MDF, plywood, plastic, honeycomb aluminum and solid surface materials.

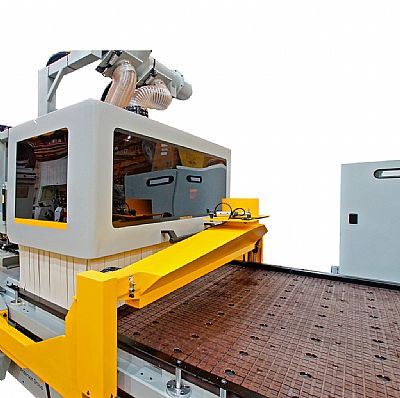

The Anderson Traveling Gantry design provides easy machine access. The modular concept comes in a variety of machine formats and sizes. The STRATOS machining centers set a new standard in cost effective, high speed CNC machining. CNC Controls include Ethernet options to provide remote technical support; optional C-axis available. Work piece holding flexibility is provided by optional clamping, grid or manifold vacuum systems. The STRATOS CNC Machining Center utilizes an industry standard G-code for control functions that allows easy interfacing with all major CAD/CAM software and industry standard solid modeling software packages. Additional options include work piece dimension probing, both single and dual zone capabilities and custom configurations upon request.

SPECIFICATIONS



MODEL - STRATOS SUP STRATOS PRO STRATOS PRO XL
STROKE X AXIS 3,400mm 3,900mm 3,900mm
  Y AXIS 2,180mm 2,180mm 2,100mm
  Z AXIS 250mm 350mm 350mm
TABLE SIZE   3,200x1,600mm 3,700x1,600mm 3,700x2,100mm
VACCUM AREA   2 2 2
MAX.FEED SPEED X AXIS 50m/min 80m/min 80m/min
  Y AXIS 380V/29Kw 50m/min 60m/min 45m/min
  Z AXIS 12m/min 30m/min 30m/min
NO.1 ATC HEAD SPEED 1,000-24,000rpm 1,000-24,000rpm 1,000-24,000rpm
  SPINDEL HSK-63F HSK-63F HSK-63F
  POWER 7.5Kw 7.5Kw 7.5Kw

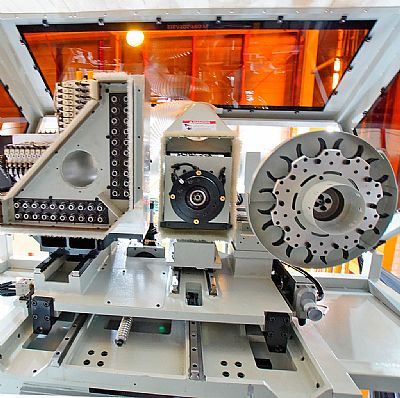

NO.2 MULTI-DRILL DRILL ROTATION SPEED 4800rpm 4800rpm 4800rpm
(5 X 5 VERTICAL) SHANK OF DRILL ø10mm ø10mm ø10mm
  POWER 1.5Kw 1.5Kw 1.5Kw
TOOL SHANK OF ROUTER BIT MAX.ø25mm MAX.ø25mm MAX.ø25mm
  NUMBER OF TOOLS 8 8 8
POWER   380V/30Kw /56A
AIR PRESSURE HOS:3/4'' 6kg/cm2 6kg/cm2 6kg/cm2
  CONSUMPTION 330L/min 330L/min 330L/min
NC CONTROLER   ANDI-FANUC ANDI-FANUC ANDI-FANUC
DIMENSIONS FLOOR AREA 6,340x3,750mm 6,840x3,750mm 6,480x4,970mm
  HEIGHT 2,800mm 2,950mm 2,950mm
  WEIGHT 5,500kg 5,500kg 6,000kg
