CNC Routers( 3 & 4 Axis Series)

SELEXX Series

About the SELEXX-Series

ANDI Routers  are proven in the high production manufacturing industry . They are used in all facets of industry through the world , including Aerospace Technology , Woodworking Production , Plastics and Composite Materials Processing . Due to the solid construction, high quality components , machine characteristics the ANDI Selexx series offers the best price and quality ratio of any cost efficient CNC router on the market today. CNC Routers offers  a first class CNC Machining centre . Selexx has been developed specifically to satisfy the client demanding the utmost in technical quality and reliability in a CNC Machining Centre within a cost effective investment.

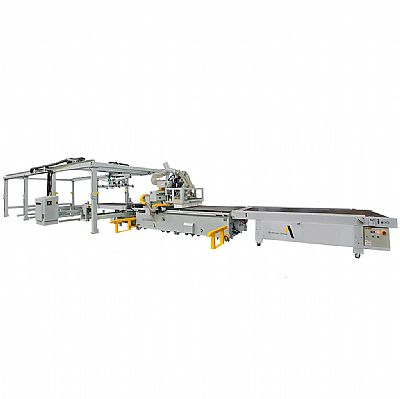

Automatic Unloading Pusher

Optional Pusher increases the machine productivity by up to 90%. At the completion of the machining cycle the pusher transports the completed nest of panels out of the working area allowing immediate loading of the next machining cycle.

SPECIFICATIONS



Basic configuration SELEXX Eco 48 SELEXX 2513 SELEXX 2517 SELEXX 2519 SELEXX 3118 SELEXX 3713 SELEXX 3718 SELEXX 3719
Y-Axis Stroke 1600 mm 1720 mm 2630 mm 2630 mm 3180 mm 3830 mm 3880 mm 4460 mm
X-Axis Stroke 2600 mm 2500 mm 1720 mm 2245 mm 1835 mm 2245 mm 1835 mm 2290 mm
Z-Axis Stroke 250 mm 250 mm 250 mm 250 mm 250 mm 250 mm 250 mm 250 mm
Table Size 2500 x 1300 mm 1300 x 2500 mm 1300 x 2500 mm 1900 x 2500 mm 1550 x 3100 mm 1900 x 3700 mm 1550 x 3750 mm 1900 x 3700 mm
X-Axis feed Speed 40 m/min 50 m/min 50 m/min 50 m/min 50 m/min 50 m/min 50 m/min 50 m/min
Y-Axis Feed Speed 40 m/min 80 m/min 80 m/min 80 m/min 80 m/min 80 m/min 80 m/min 80 m/min
Z-Axis Feed Speed 20 m/min 20 m/min 20 m/min 20 m/min 20 m/min 20 m/min 20 m/min 20 m/min
Spindle RPM 1.000~24.000 rpm 1.000~24.000 rpm 1.000~24.000 rpm 1.000~24.000 rpm 1.000~24.000 rpm 1.000~24.000 rpm 1.000~24.000 rpm 1.000~24.000 rpm
Spindle Taper HSK63F air cooled HSK63F air cooled HSK63F air cooled HSK63F air cooled HSK63F air cooled HSK63F air cooled HSK63F air cooled HSK63F air cooled
Spindle Power 7.5 kw x 1 (10hp) 7.5 kw x 1 (10hp) 7.5 kw x1 (10 hp) 7.5 kw x 1 (10hp) 7.5 kw x 1 (10hp) 7.5 kw x 1 (10hp) 7.5 kw x 1 (10hp) 7.5 kw x 1 (10hp)

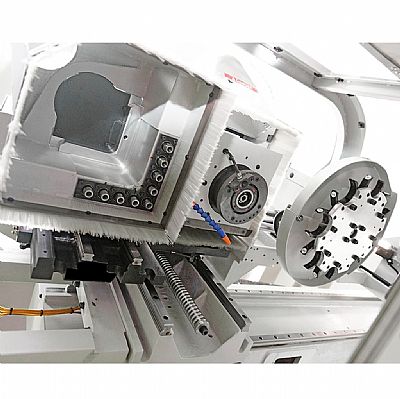

Multi-Drill 5*5 5*5 5*5 5*5 5*5 5*5 5*5 5*5
Drill Rotation Speed 4.500 rpm 4.800 rpm 4.800 rpm 4.800 rpm 4.800 rpm 4.800 rpm 4.800 rpm 4.800 rpm
Shank of Drill ψ10 mm ψ10 mm ψ10 mm ψ10 mm ψ10 mm ψ10 mm ψ10 mm ψ10 mm
Power 0.75 kw x 1 1.5 kw x 1 1.5 kw x 1 1.5 kw x 1 1.5 kw x 1 1.5 kw x 1 1.5 kw x 1 1.5 kw x 1
Vacuum Pump Power 5.5 kw x 1 (7.5 hp) 5.5 kw x 1 (7.5 hp) 5.5 kw x 1 (7.5 hp) 5.5 kw x 1 (7.5 hp) 5.5 kw x 1 (7.5 hp) 5.5 kw x 1 (7.5 hp) 5.5 kw x 1 (7.5 hp) 5.5 kw x 1 (7.5 hp)
Air Pressure 6 kg/cm² 6 kg/cm² 6 kg/cm² 6 kg/cm² 6 kg/cm² 6 kg/cm² 6 kg/cm² 6 kg/cm²

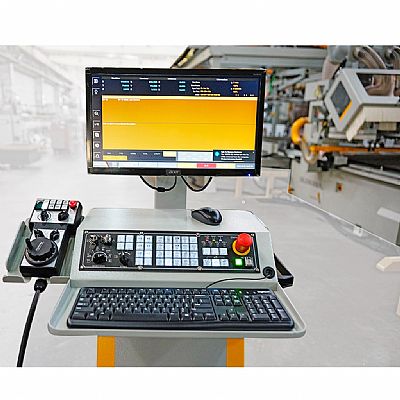

NC Controller ANDI-FANUC ANDI-FANUC ANDI-FANUC ANDI-FANUC ANDI-FANUC ANDI-FANUC ANDI-FANUC ANDI-FANUC
Floor area of machine 6,000 mm x 4,500 mm 5,200 x 4,000 mm 5,200 x 4,000 mm 8,000 mm x 4,500 mm 5,800 x 4,250 mm 8,000 mm x 4,500 mm 8,000 x 4,500 mm 15,800 mm x 5,300 mm
Height of machine 2,300 mm 2,300 mm 2,300 mm 2,450 mm 2,450 mm 2,450 mm 2,450 mm 2,450 mm
Weight of machine 2,800 kg 3,600 kg 3,600 kg 5,500 kg 4.,600 kg 6,500 kg 4,600 kg 10,500 kg
